Zebra ZT411: ZPL guide
<img src="/guides/zebra/zt411.jpg" alt="Zebra ZT411" width="360" loading="lazy" />
Zebra ZT411: ZPL guide

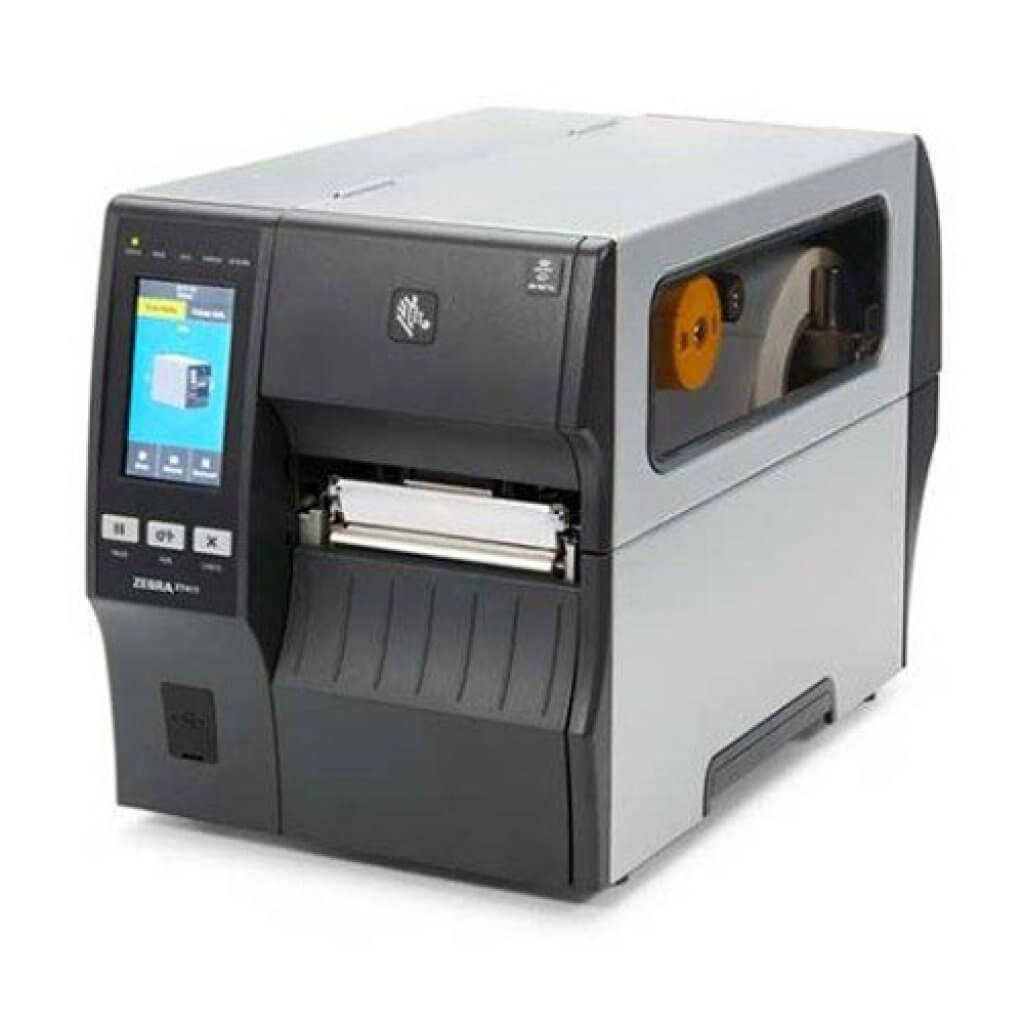

The Zebra ZT411 is an industrial printer with ZPL support. Below you will find the most important specifications for designing and printing labels as well as tools to preview your ZPL.
Key specifications
| Model | Zebra ZT411 |
|---|---|
| Resolution | 203 DPI / 300 DPI / 600 DPI |
| Maximum print width | 104 mm (4.1") @ 203 DPI |
| Type | Industrial |
| Technology | Direct thermal and thermal transfer |
| Print speed | 14 ips / 356 mm/s (203 DPI); 12 ips / 305 mm/s (300 DPI); 6 ips / 152 mm/s (600 DPI) |
| Firmware / languages | ZPL II; EPL 2; XML |
| Connectivity | USB; Ethernet (options: Serial, Parallel, Wi-Fi, Bluetooth) |
Designing labels for the Zebra ZT411
Create your ZPL by adjusting the DPI to the printer and choosing a width within the specified maximum. Preview it in the viewer to avoid clipping or wasted material.
| DPI | Maximum width | ^PW value |
|---|---|---|
| --- | --- | --- |
| 203 DPI / 300 DPI / 600 DPI | 104 mm | ^PW831 |
^PW sets the printable width in dots. Use the value that matches the actual DPI of your printer.
^XA
^PW831
^LL1199
^FO40,40^A0N,38,38^FDZebra ZT411 - 203 DPI^FS
^FO40,100^GB751,2,2^FS
^FO40,130^A0N,28,28^FD104 mm / 831 dots^FS
^XZ
Official source
Technical data from the Zebra ZT411 specification sheet.
- [View the Zebra source](https://www.zebra.com/us/en/products/spec-sheets/printers/industrial/zt411.html)
Frequently asked questions
What resolution (DPI) does the Zebra ZT411 have?
See the specification table: it lists the available DPI for this model.
Can I preview my ZPL for the Zebra ZT411 without printing?
Yes. Paste your code into the ZPL viewer and set the Zebra ZT411's DPI to see the label exactly as printed.
